Melco connection troubleshooting

Use this checklist if your Melco machine stops communicating with the PC.

  • Check the network connections.
    • Check all cables (swap with a known working machine if possible).
    • If connected via a switch or hub, plug the embroidery machine directly into the computer.
    • Check whether Windows has recently updated.
    • Temporarily turn off any antivirus and firewall software that could be blocking the connection.
  • Confirm the network connection in Melco OS.

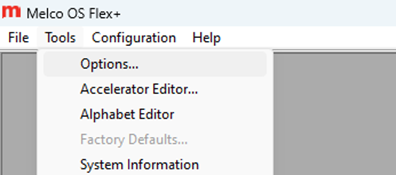

    • Go to Tools > Options.

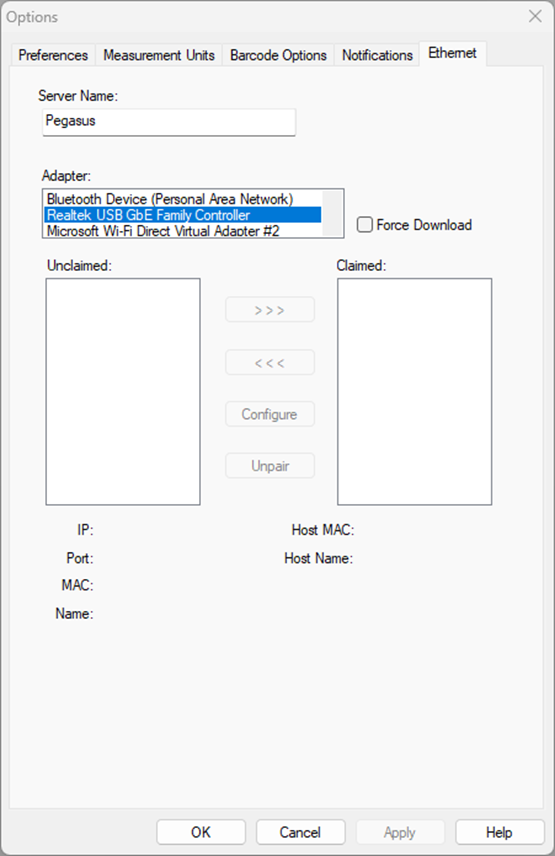

    • Open the Ethernet tab. Select the LAN card connected to the machines (it should be highlighted in blue), then click Apply and OK.
    • Reboot Melco OS and the machine to reconnect.
  • Use the advanced connection menu (enable via registry if required).

Warning: Only make the change described below. Editing other registry keys can cause Windows system errors.

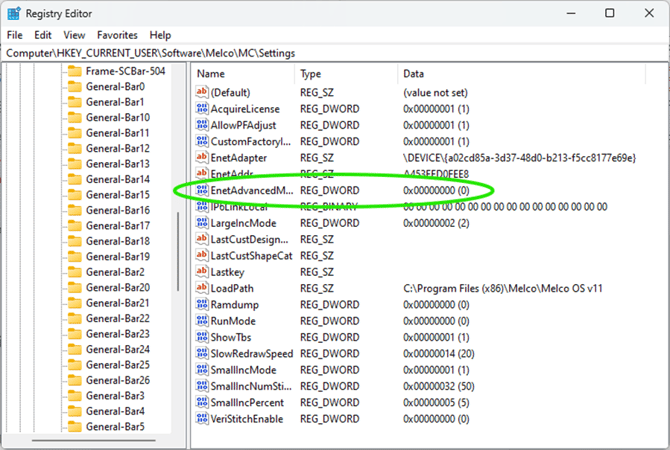

    • In the Windows search bar, type RegEdit and open the Registry Editor.
    • Navigate to: HKEY_CURRENT_USER\Software\Melco\MC\Settings
    • Double-click EnetAdvanced and change the value from 0 to 1, then close the Registry Editor. The advanced Ethernet menu will now be available in Melco OS.
    • If no machines appear, the machine may require a Manual USB Reflash, follow the steps on the link below to complete this:
    • If you see the machine in the left box with a + next to it, it needs to be Unpaired and Reclaimed. Select the machine on the left and click Unpair.
    • Close the network settings window, then reopen it. The machine should now appear without a +. Select the machine and click the >>>>> button. The machine should beep, appear in the right-hand box, and sync to the computer.
  • Reinstall the software.
    • If the above does not work, reinstall Melco OS. Follow the steps in the Melco OS Installation Guide (available on the support page).
  • Try a different PC.
    • Install the software on another PC and confirm the machine can connect from there.

  • Still having issues? The problem may be an electrical failure and a service visit could be required. Request support.
